AT Optical Instruments Co., Ltd.
Product Specifications
Material
Fused Silica, Corning 7980, BK7, CDGM / Schott / Omaha Glasses, CaF2
Coatings
UV, VIS, NIR, SWIR, MWIR(Thorium Free), LWIR
Technical Drawing

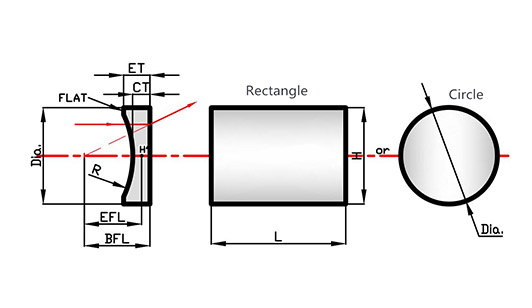

Plano concave cylindrical lens

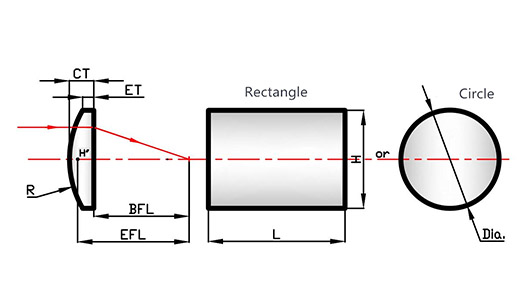

Plano convex cylindrical lens
Technical Specifications
Dimension Range
5-300mm
Surface quality
10-5
Surface Figure
lambda/10
Surface Roughness
<10 Ang
Centration
< 3 arc min
Thickness Tolerance
+/-0.01 ~ +/-0.2mm
