AT Optical Instruments Co., Ltd.
Product Specifications
Material
Fused Silica, CaF2, Silicon, Sapphire, BaF2, MgF2, CDGM / Schott / Omaha Glasses, Znse, Sic
Coatings
UV, VIS, NIR, SWIR, MWIR(Thorium Free), LWIR
Technical Drawing

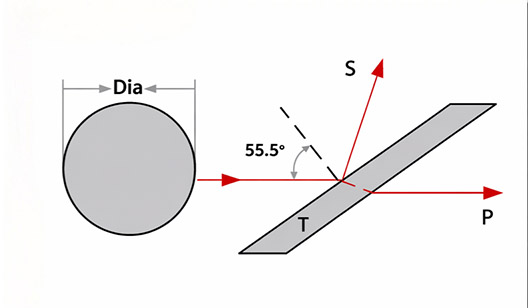

Brewster windws

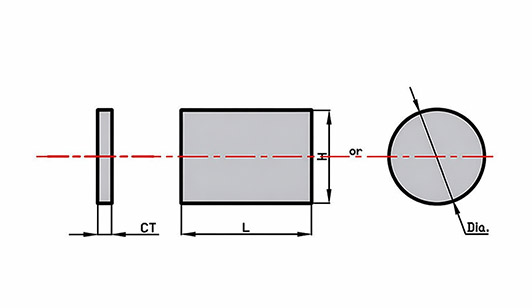

Plane windows

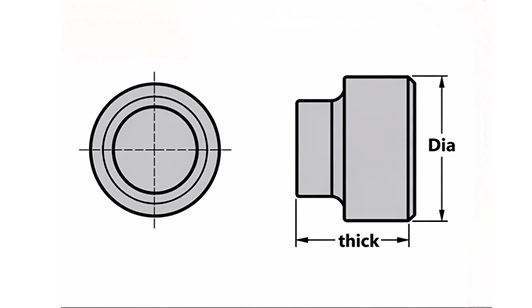

Step Window

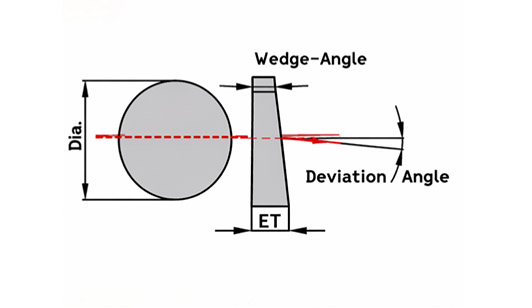

Wedge windows
Technical Specifications
Diameter
1 ~ 1000mm
Diameter tolerance
+0 -0.1mm
Thickness tolerance
+/-0.1mm
Surface quality
10-5
Flatness
< lambda/10
Parallelism
< 10 arc sec
