Product Specifications
Material
N-BK7、Fused Silica、Corning 7980、Pyrex、CDGM / Schott / Omaha Glasses,
Coatings
UV, VIS, NIR, SWIR, MWIR(Thorium Free), LWIR
Technical Drawing

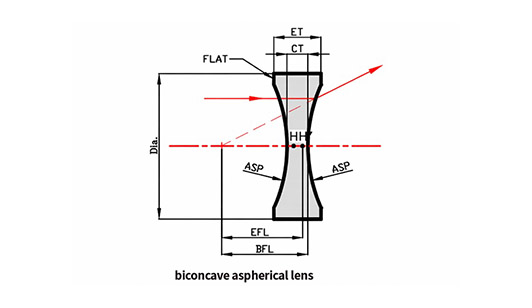

biconcave aspherical lens

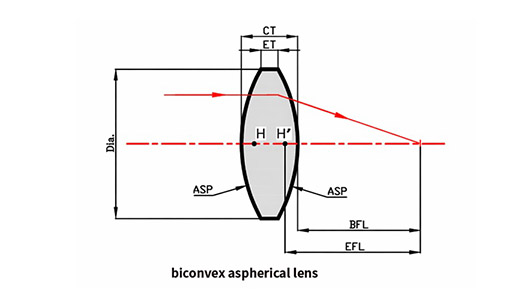

Biconvex aspherical lens

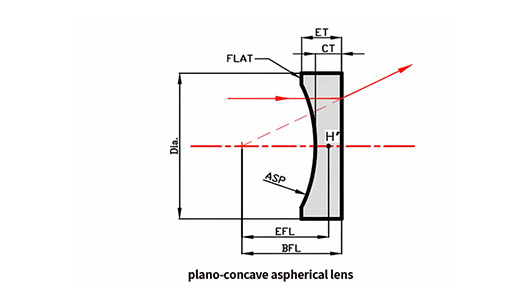

Plano-concave aspherical lens

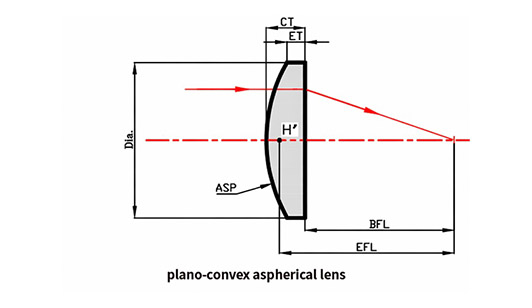

Plano-convex aspherical lens
Technical Specifications
Dimension Range
5-300mm
Surface quality
10-5
Surface Figure
lambda/10
Surface Roughness
<10 Ang
Centration
< 3 arc min
Thickness Tolerance
+/-0.01 ~ +/-0.2mm
