Product Specifications
Material
Fused Silica, BK7, CDGM / Schott / Omaha Glasses, CaF2, Silicon
Coatings
UV, VIS, NIR, SWIR, MWIR(Thorium Free), LWIR
Technical Drawing

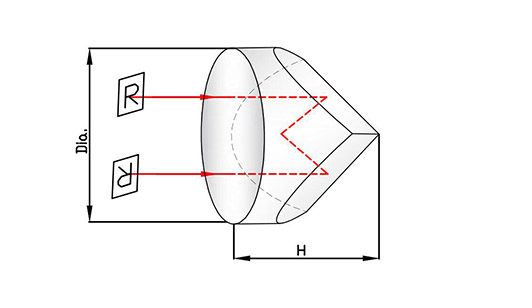

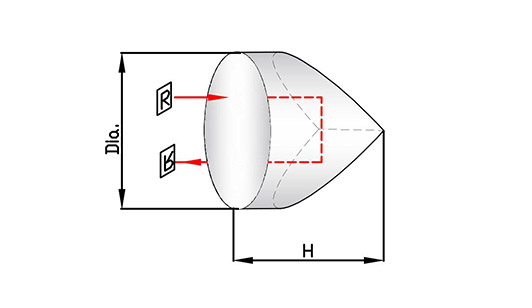

Corner cube prisms

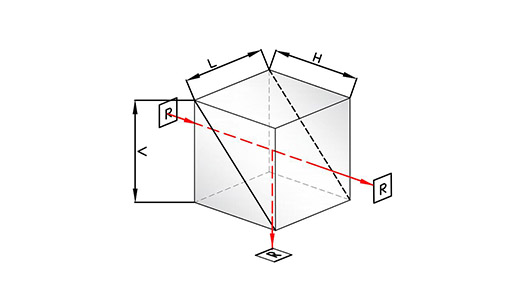

Cube prism

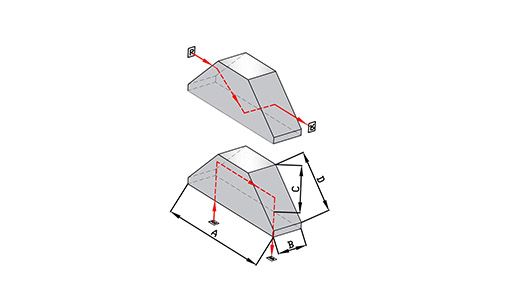

Dove prism

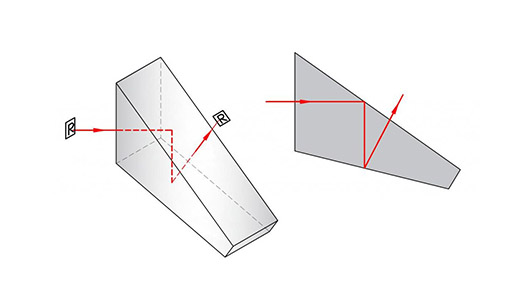

Half penta prisms

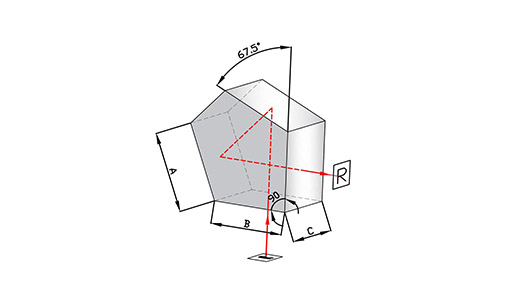

Penta prisms
Porro prisms

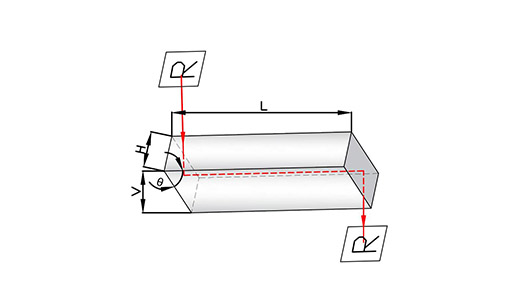

Rhomboid prisms

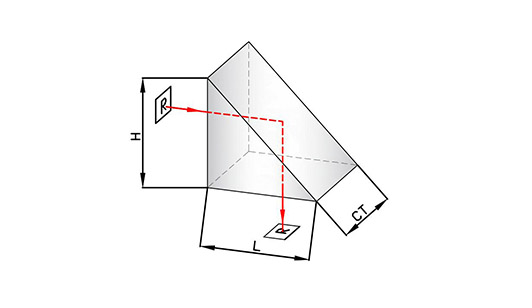

Right prism

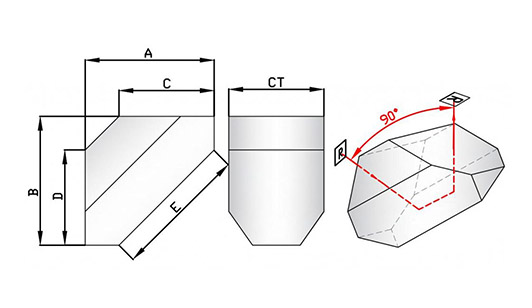

Roof prisms
Technical Specifications
Dimension
3 ~ 500mm
Dimension tolerance
+/-0.01 ~ +/-0.2mm
Surface quality
10-5 ~ 80-50
Angle Tolerance
+/-1”
Flatness
lambda/10
